Create*Notes

Generation of PMI features in accordance with defined company requirements

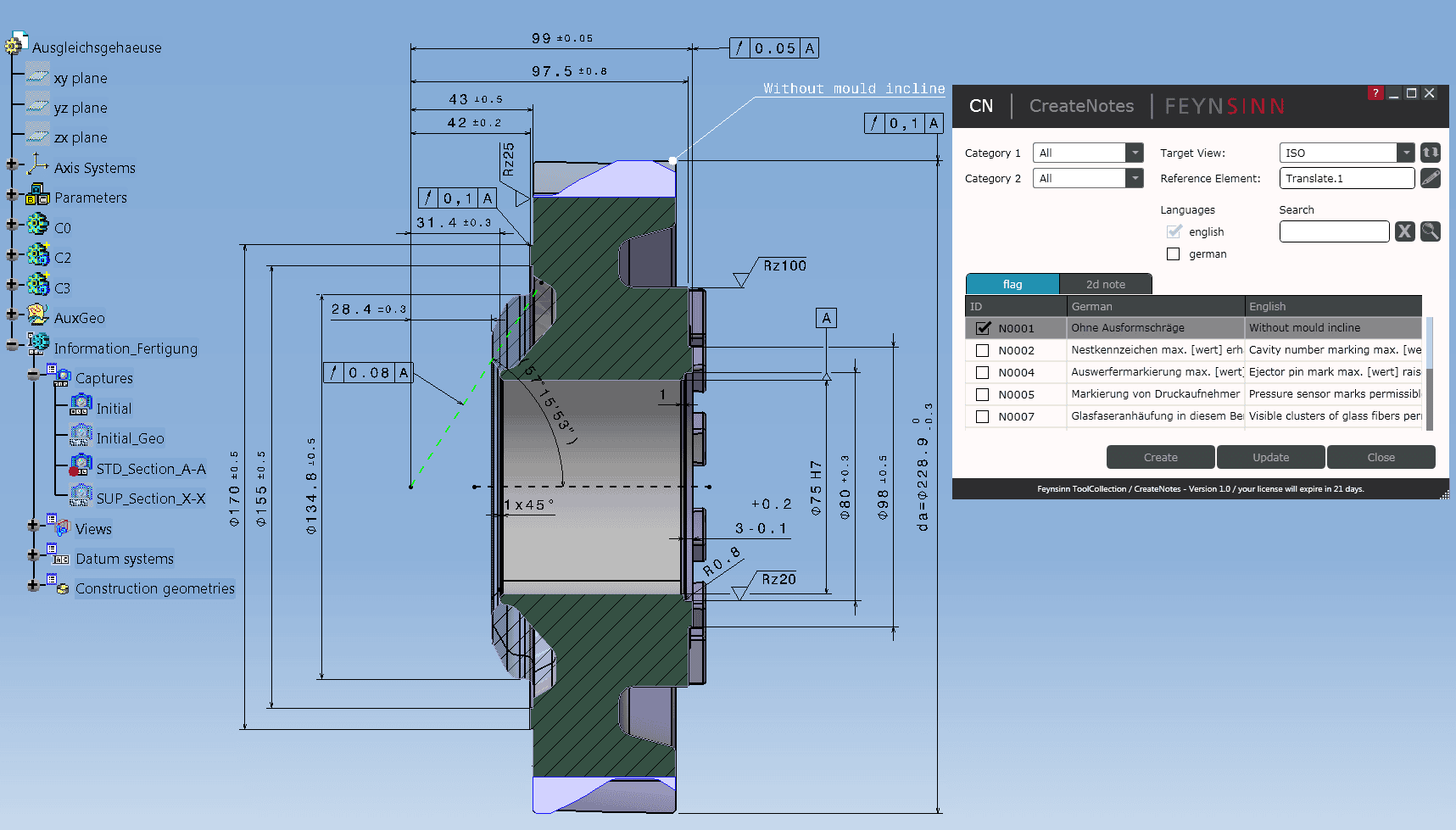

The application Create*Notes generates texts (PMI features = Product and Manufacturing Information) in 3D to company-wide standards, in accordance with strictly defined company requirements. In addition to the geometry, product and production-relevant information providing advice on technology or product descriptions is also saved. The application also serves to ensure perfect data continuity.

Additions can easily be made to the standardised texts. New texts can simply be included in a database. As a rule, it is the teams from the company’s Standardisation or Standards departments who decide which texts are to be included.

Service or maintenance agreements are concluded to ensure that the application works perfectly, even after a software update.

List of functions

  • Texts are assigned to groups
  • Upgraded filter options (categories, tabs) and search functions have been implemented
  • Texts that have already been saved in CATPart (file type from Catia) are preselected in the user interface

System requirements: CATIA V5-6 R2016, Windows 7/Windows 10

Advantages

  • Reduction of the cost of creating text features (PMI) in 3D
  • Increased process reliability due exclusive use of standardised texts
  • Further processing of the PMI generated is possible as the PMI features are machine readable

The application Create*Notes generates texts (PMI features = Product and Manufacturing Information) in 3D to company-wide standards, in accordance with strictly defined company requirements. In addition to the geometry, product and production-relevant information providing advice on technology or product descriptions is also saved. The application also serves to ensure perfect data continuity.

Additions can easily be made to the standardised texts. New texts can simply be included in a database. As a rule, it is the teams from the company’s Standardisation or Standards departments who decide which texts are to be included.

Service or maintenance agreements are concluded to ensure that the application works perfectly, even after a software update.

List of functions

  • Texts are assigned to groups
  • Upgraded filter options (categories, tabs) and search functions have been implemented
  • Texts that have already been saved in CATPart (file type from Catia) are preselected in the user interface

System requirements: CATIA V5-6 R2016, Windows 7/Windows 10
